4000LM 43W MK RANGE OF ADJUSTABLE LED DOWNLIGHTS

In recent years, adjustable lighting is increasingly popular to build desired lighting solutions based on the customer preferences. The MK series of adjustable LED downlights are created to satisfy the DIY lighting needs utilizing modular and removable approach. Ranging from internal led light sources, optical systems, lens to external light parts such as led driver and housing frames, all of these are removable and interchangeable with different lighting options available. This 43W LED MK modular downlight can offer bright and efficient light level of 4000LM and the light intensity is able to be set flexibly with 1-10V dimming solution.



Additionally, the MK recessed adjsutable led downlights are able to be docked freely into different light systems. With up to sixteen different lighting components, you can customize up to 228 types of innovative and unique lighting kits. For example, some common docking options could include 1x1 lamps, 1x2 lamps, 1x3 lamps, 1x4 lamps ,2x2 lamps, etc. There are also a total of four different optics including  24°,38°,60°for creating versatile lighting patterns. This D6 modular downlight system  is made with high quality die casting aluminum housing beneficial to heat transfer.


Base (standard designation):
DOWNLOAD
click to print page
  • photo name
  • photo name
  • photo name
  • photo name
  • photo name

FEATURES:

• Provide highly efficient lighting solutions with high energy efficacy of 100LPW.

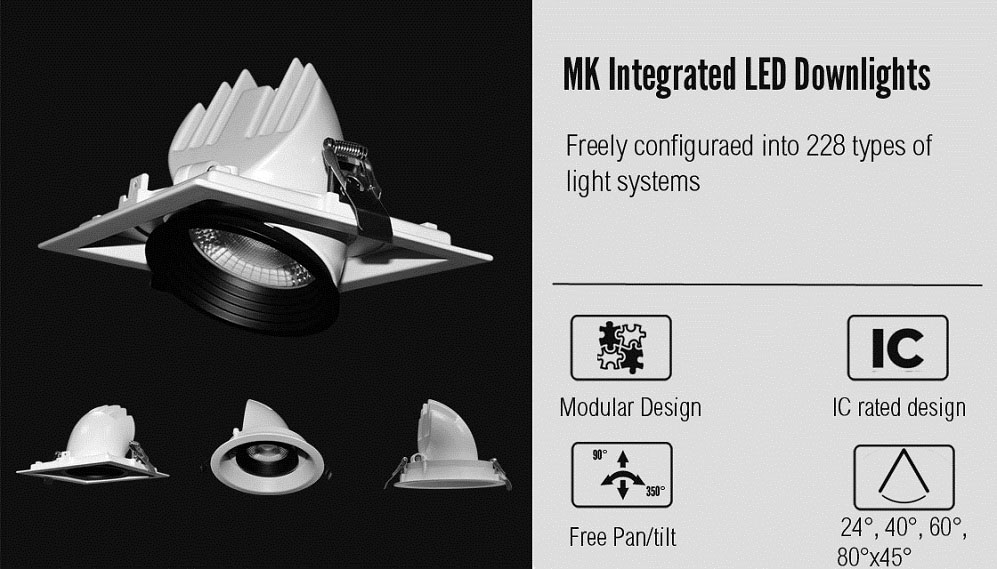

• Support flexible and various docking and configuration from up to a total of sixteen different lighting components .

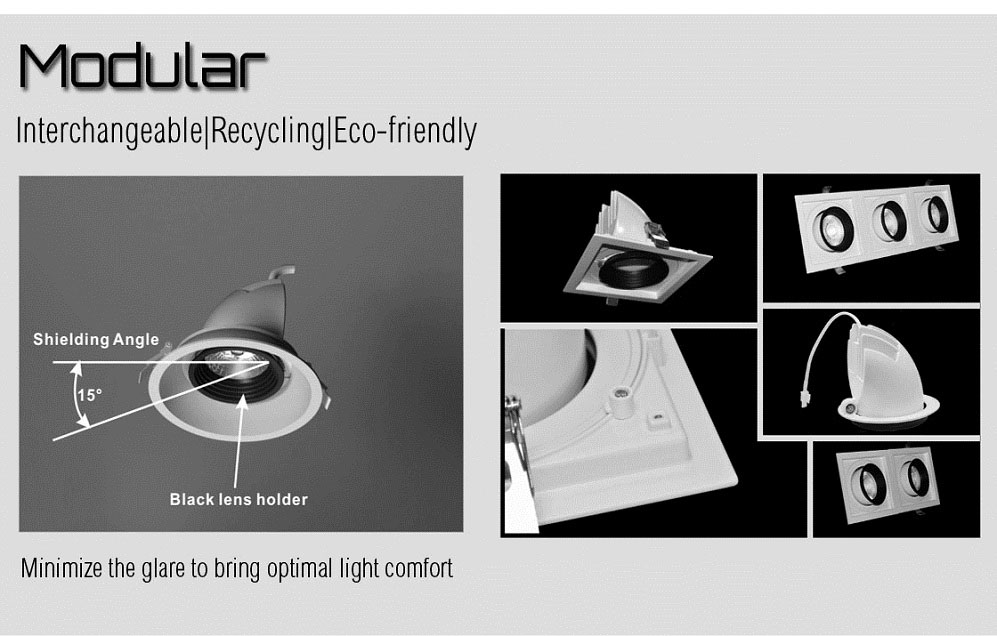

• Modular design with removable and exchangeable light parts for bringing optimal user experience.

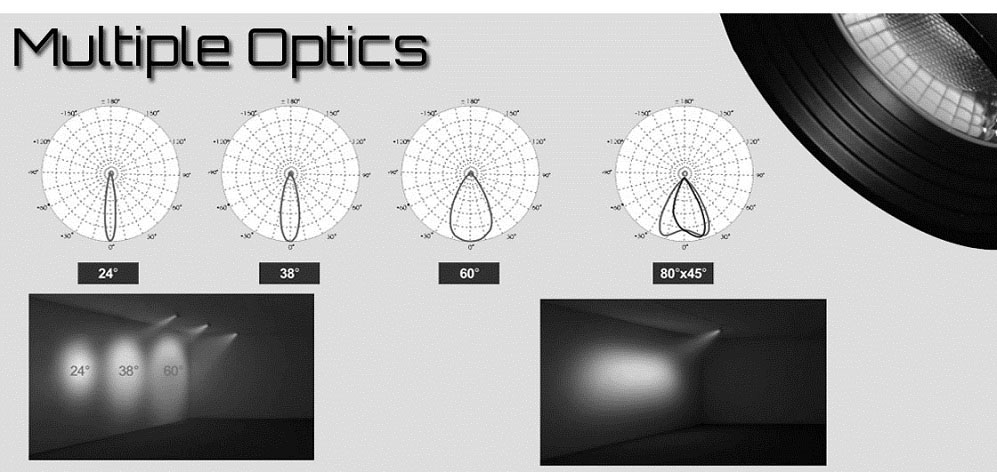

• A total of four differed beam angles are offered including 24°, 40°, 60°

• Freely adjusted with 350-degree pan and 50-degree tilt

• Non-dim, 1-10V  dimming options are available

• Excellent power factor of more than 0.95

• Insulation contact IC rated design, suitable for locations with insulated ceilings

• High stability and safety performance with certificates of ETL and FCC

SPECIFICATION:

Product   CodeR6-DL003-43
Produce   Name 43W adjsutable modular LED downlights
Input Voltage120V AC
Power43W
Power Factor>0.95
DimmableNon-dim, 1-10V
Lumen Flux4000lm
Beam Angle24°, 38°, 60°,
CCT Optial2700K/3000K/4000K/5000K
CRI Optial

CRI82 (CRI90 available)

Size7 5/16"x5/1/2"
Cutout Size D6 1/2"
