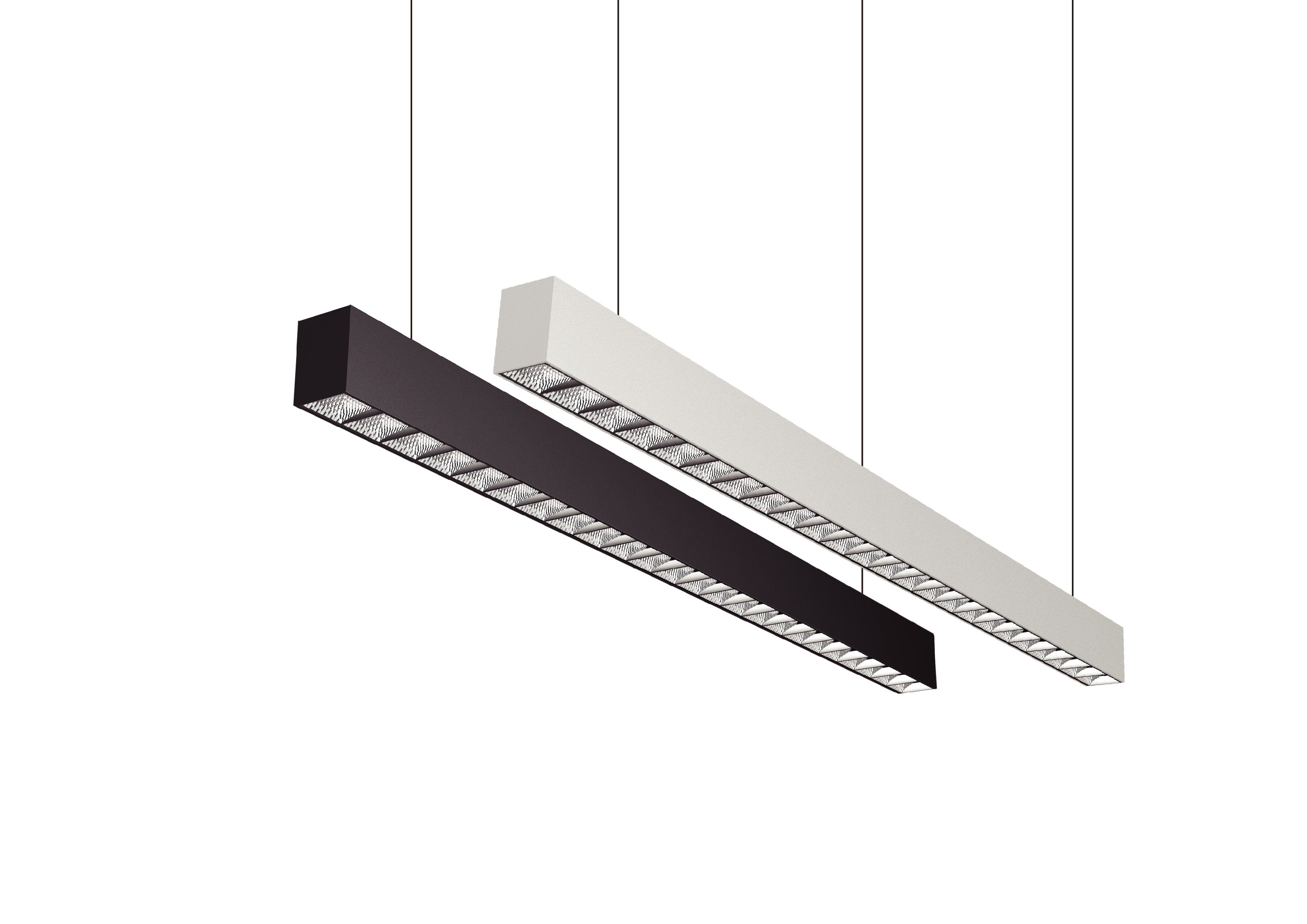

Xline Plus Suspension Series: Continuous Linear LED Luminaries

Kinglumi supplies high quality linear LED lighting solutions based on modular design worldwide. Our offer is a cost effective, unique modular with easy installation, glare light control and variety of lighting control systems.

Xline Plus LED Office Linkable Linear Lights, provides full lighting scheme requirement. It is CE, RoHS, SAA, ETL approved. Premium Anti Glare Architectural High-End LED Suspension Lighting Fixture thanks for the optimized optic design to cut-off the glare lights. Xline Plus provides both up/down(Direct/Indrect) light, and it provides variety of optics solutions of Louver, MicroPrism, Opal diffuser to archive different lighting schemes of general lighting, asymmetric shelves lighting and wall washer, bi-symmetric aisle lighting.There are 500mm, 1167mm, 1500mm, 1800mm and 2330mm of length(other on request) available. And the system provides straight, L / T / X connectors makes it flexible and seamless continuous connection to build creative and innovative lighting system.

Applications: Ideal for offices, lobbies, conference rooms, libraries, classrooms, retail space, and many other applications

Base (standard designation):
click to print page
  • photo name
  • photo name
  • photo name

Features Highlight

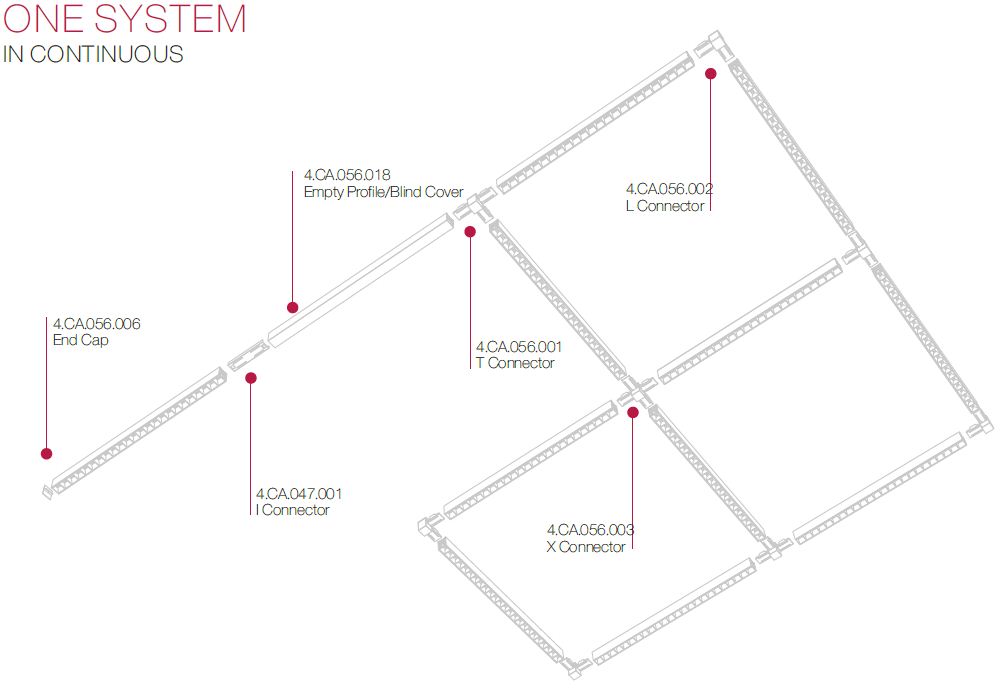

l  Seamless continuous & looping design with I, L, T, X connectors

l  Direct lighting, or Indirect & direct lighting

l  Optic solutions: general lighting, aisle lighting and wall washer and shelve lighting.

l  UGR 19, 22 depends on optics solution

l  Lighting congtrol system: DALI-2, 1-10V(ON/OFF); Zigbee, Bluetooth and Wiz(on request)

l  Quick continuous installation with pre-wires connectors

l  Smart lighting control by DALI DT8(Zigbee and Bluetooth on request)

l  CCT: 3000K, 4000K, 5000K, (Tunable White or other CCT on request)

l  Ultra-compact, aesthetic and minimalist, and no visible screws

l  High Efficacy of 110lm/W system efficacy

l  Flicker Free according to IEEE 1789, Title 24 and DLC

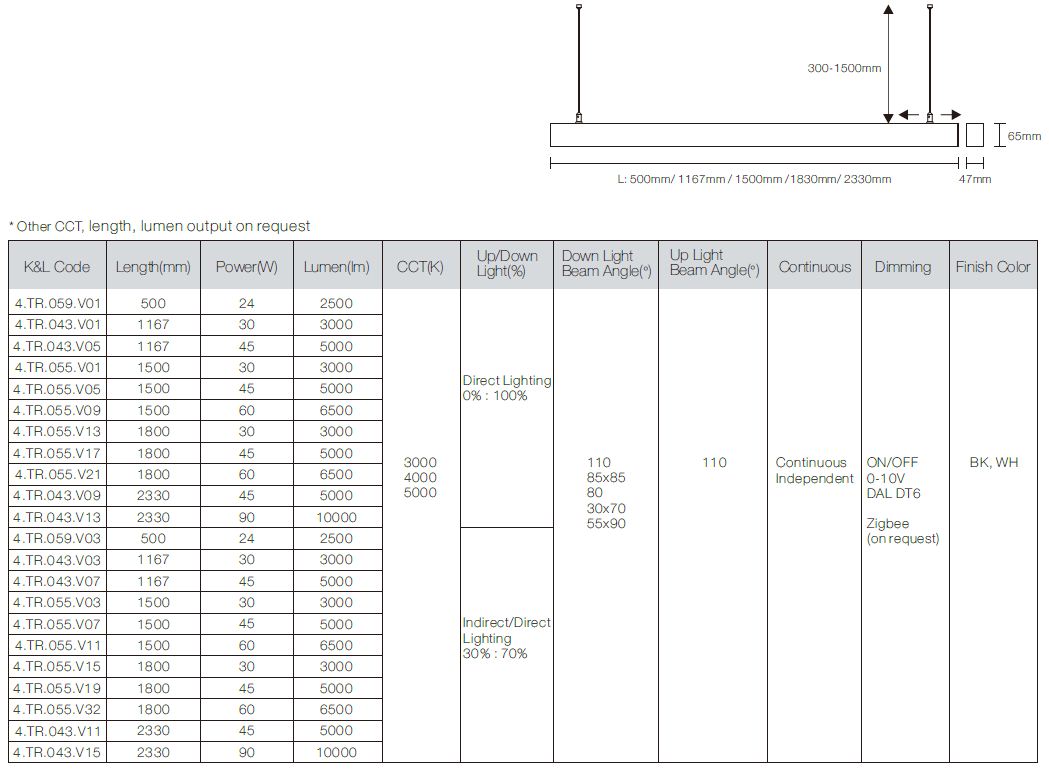

Product Datasheet

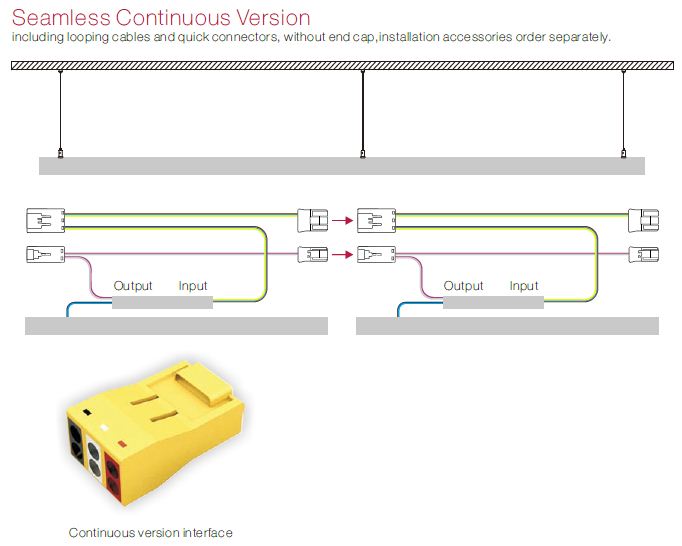

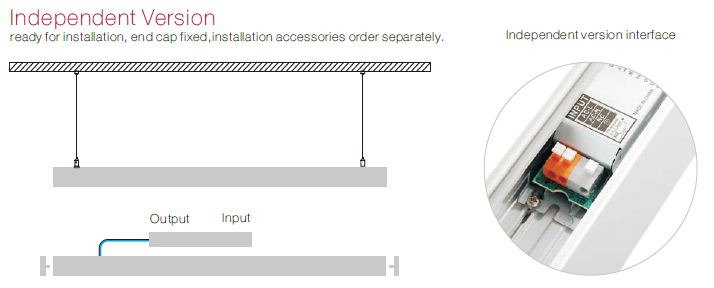

The differences between contributions version and independent version

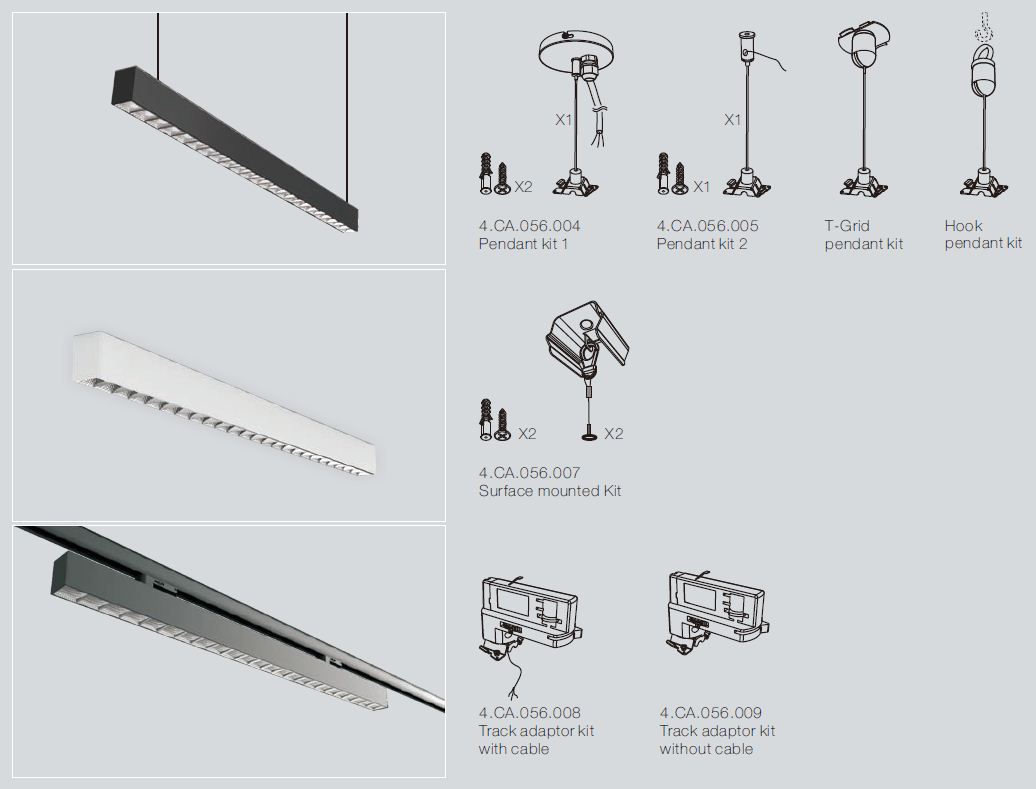

Installation Accessories Ordering Guidance

Continuous Accessories Ordering Guidance
