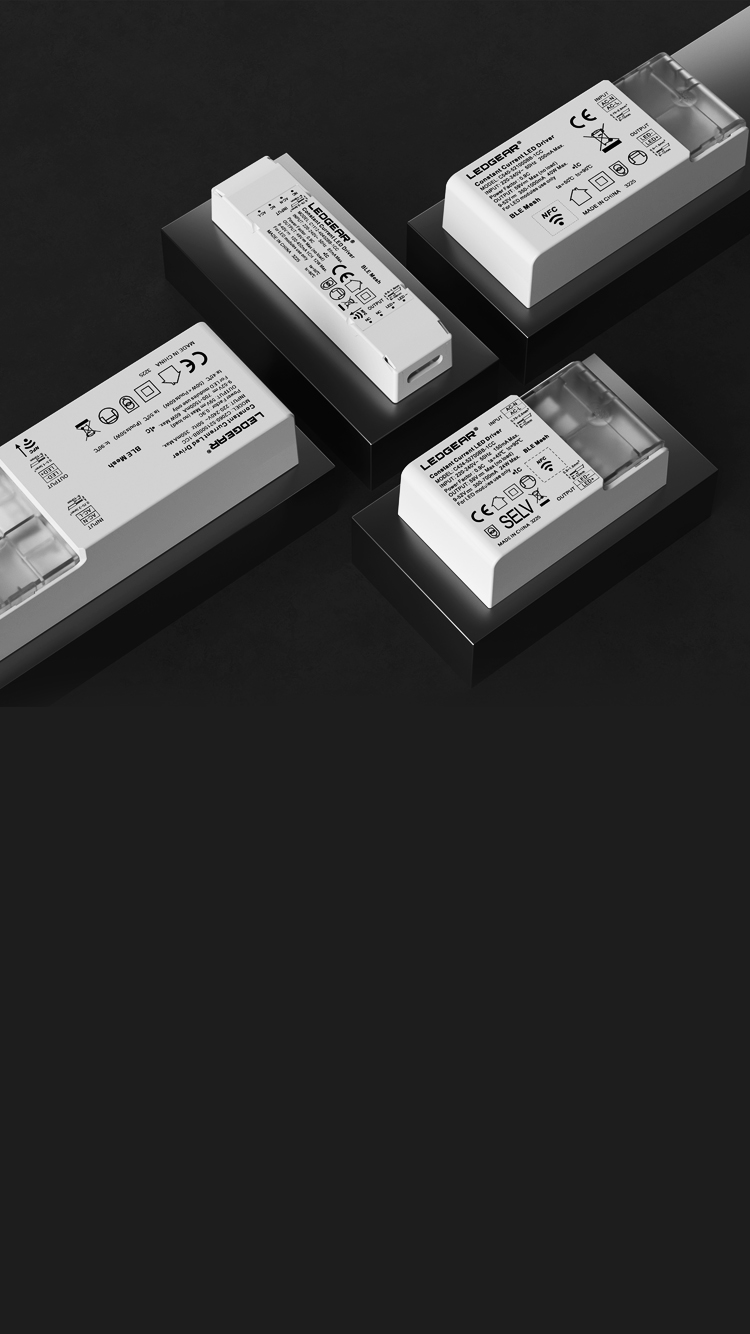

Caimeta BLE constant current driver

The CAIMETA BLE constant current driver features 3‑second NFC setup for fast scene grouping and reset without power. It delivers ultra‑smooth, flicker‑free dimming from 0.5% to 100%, achieves up to 90% efficiency with <0.45W standby power, and supports a wide output range (100–1500mA / 9–52V) to fit 1–60W luminaires. Built‑in BLE Mesh enables wireless control via the CAIMETA app for grouping, scene management, and remote operation.

Product advantage

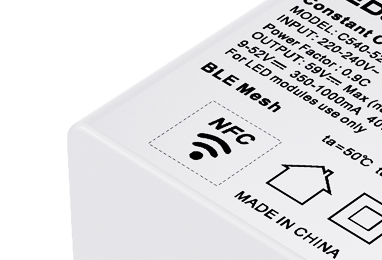

NFC Function

NFC Function

NFC enables quick 3-second setup via touch pairing, simplifying scene grouping and resets

Caimeta system

Caimeta system

CAIMETA Enabled: Built-in BLE Mesh for wireless control via app, featuring grouping, scene control, etc.

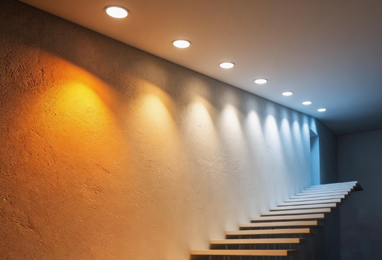

Brightness/CCT regulation

Brightness/CCT regulation

1, 2channel control enables independent brightness/CCT regulation.

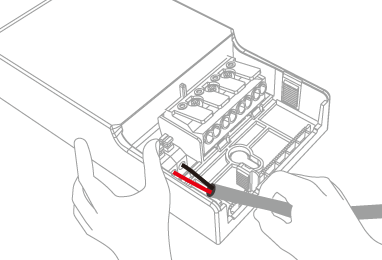

Quick Installation

Quick Installation

Quick Connect Terminals accept wires up to 1.5mm² for fast installation.

Relevant data

Product parameter

Item Number C1112-40450BB-1CC C1112-40450BB-2CC C424-52700BB-1CC C540-521000BB-1CC C540-521000BB-2CC C2060-521500BB-1CC C2060-521500BB-2CC
Housing C11 C11 C4 C5 C5 C20 C20
Input Voltage 220-240Vac 220-240Vac 220-240Vac 220-240Vac 220-240Vac 220-240Vac 220-240Vac
Dimming Caimeta App Caimeta App Caimeta App Caimeta App Caimeta App Caimeta App Caimeta App
Output Wattage 12W 12W 24W 40W 40W 60W 60W
Output Voltage 9-40Vdc 9-40Vdc 9-52Vdc 9-52Vdc 9-52Vdc 9-52Vdc 9-52Vdc
Output Current 100-450mA 100-450mA 350-750mA 350-1000mA 350-1000mA 700-1500mA 700-1500mA
Output current set NFC by CAIMETA App NFC by CAIMETA App NFC by CAIMETA App NFC by CAIMETA App NFC by CAIMETA App NFC by CAIMETA App NFC by CAIMETA App
Standby Power 0.45W 0.45W 0.45W 0.45W 0.45W 0.45W 0.45W
PF 0.92 0.92 0.95 0.95 0.95 0.95 0.95
Dimension 119*29*21mm 119*29*21mm 86*52*29.5mm 115*52*29.5mm 115*52*29.5mm 137*56*32.5mm 137*56*32.5mm
