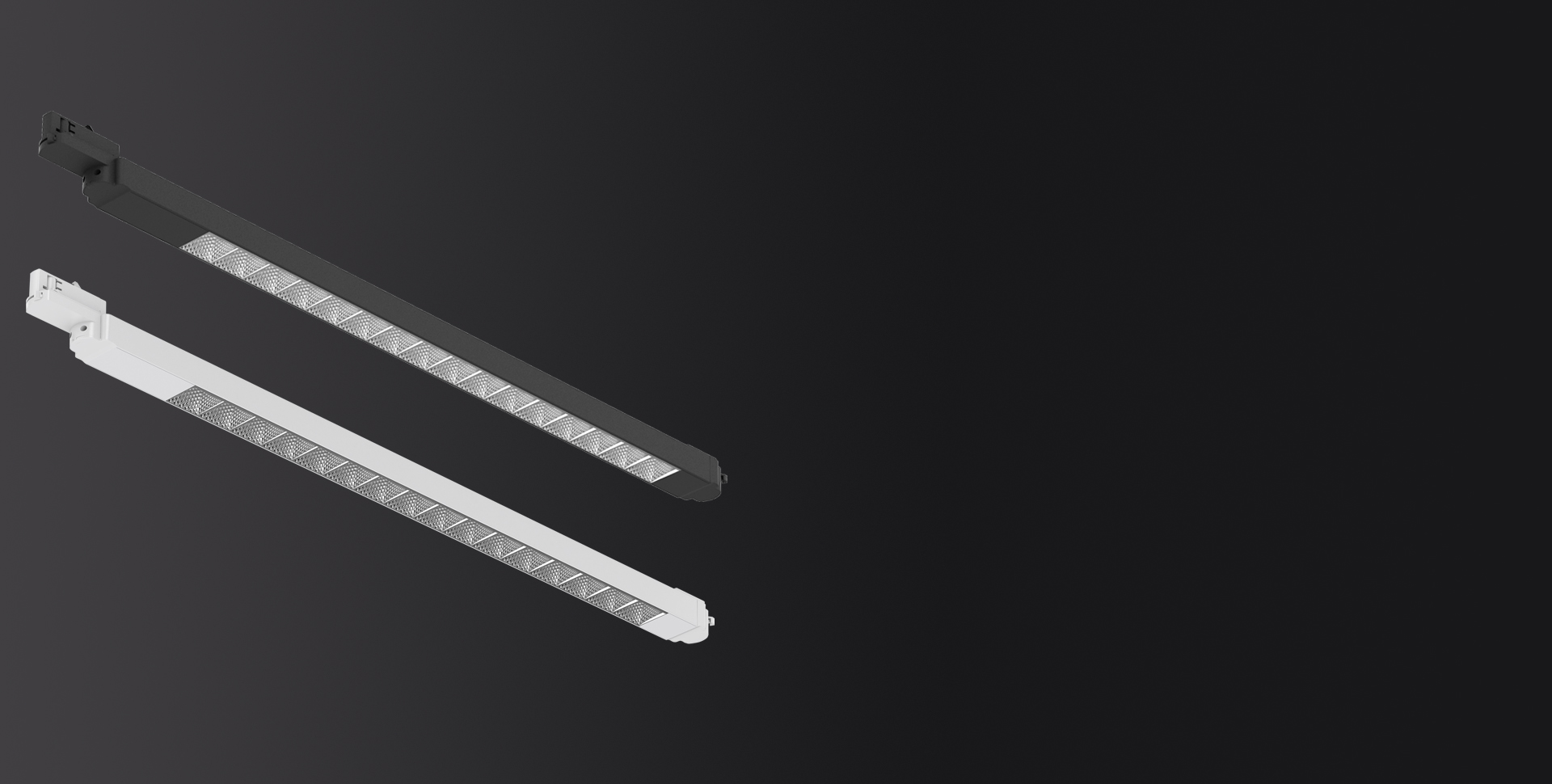

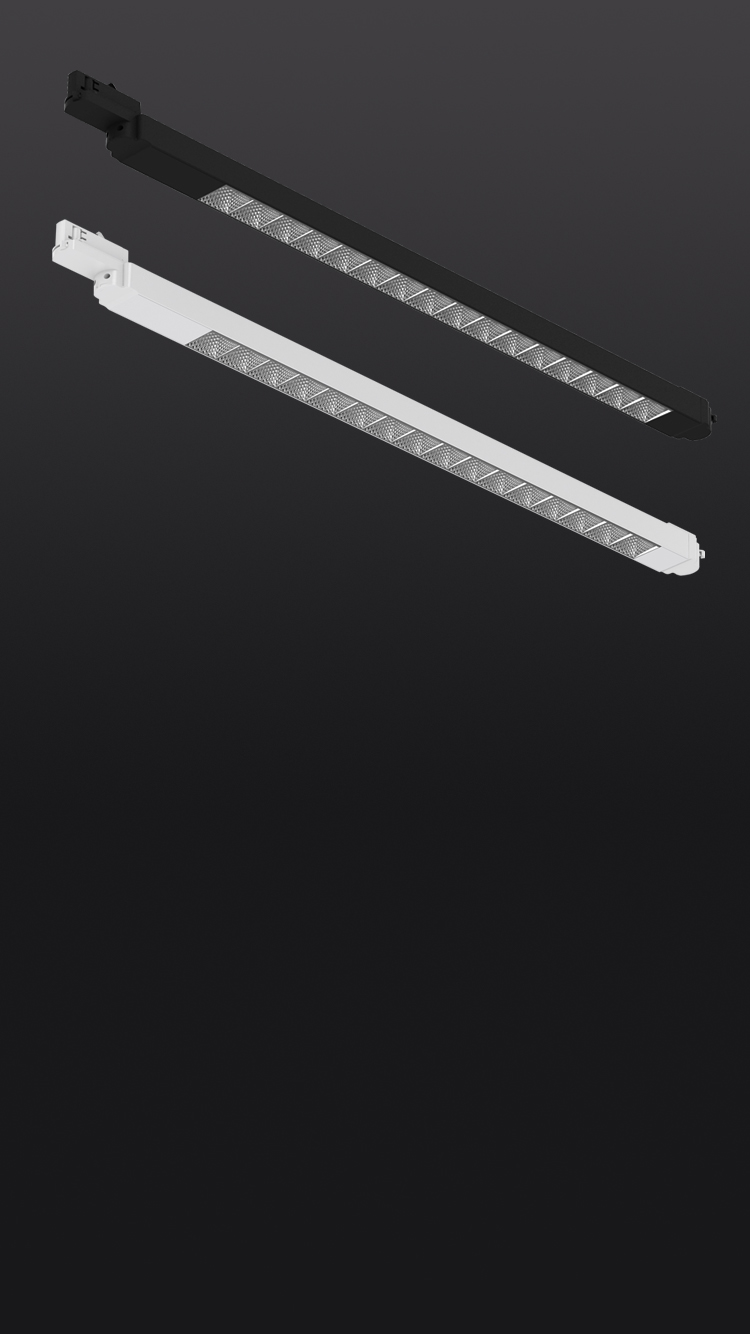

Xline Linear Track Light
Designing a fixture that seamlessly blends into the track while solving wallwash, aisle, and general lighting challenges.
Xline track is a combination of technology and aesthetics, it disappeared after installed in track rail, it is ideal for retail lighting applications where a wide even distribution of light is desired in either shelves or floor. The luminaire can be used to wash a wall with very uniformity light. Utilizing LED technology, it is extremely energy efficient and precision light distribution.
Product advantage

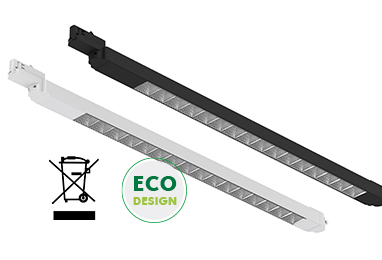

Sustainable packaging without plastic.
WEEE: Do not dispose of this luminarie with your normal
household waste. Recycle where facilities exist.

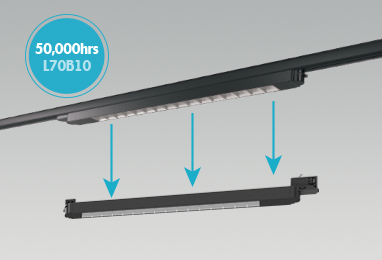

Long Lifespan: >50,000hrs(L70B10)
Replaceable light source and control gear by professional

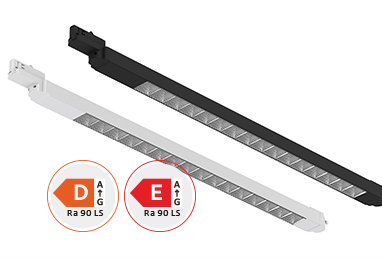

No risk flicker with Pst LM<1.0; SVM<0.4
This product contains a light source of energy Class D/E

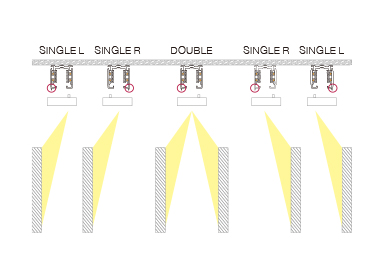

Variety of lighting distributions
Up to 120lm/W; Macadam 4 SDCM
Relevant data
Product parameter
| K&L Code | Power(W) | Lumen(lm) | Ra | Beam Angle(°) | Dimming | Finish |
| KL-TR-035-V02 | 30 | 3200 | 82 | L1,R1,D1,L2, R2,D2, A1,G1 | ON/OFF | BK, WH |
| KL-TR-035-V01 | 55 | 5700 | 82 | L1,R1,D1,L2, R2,D2, A1,G1 | ON/OFF | BK, WH |
| KL-TR-035-V05 | 30 | 3300 | 82 | G2 | ON/OFF | BK, WH |
| KL-TR-035-V03 | 55 | 5800 | 82 | G2 | ON/OFF | BK, WH |
| Note: The beam angle code stand for: | L1=25°x90° Left, L2=55°x90° Left R1=25°x90° Right, R2=55°x90° Right D1=25°x90° Double D2=55°x90° Double A1=30°x70° G1=85°x85°; G2=110° G1=85°x85°; G2=110° |
