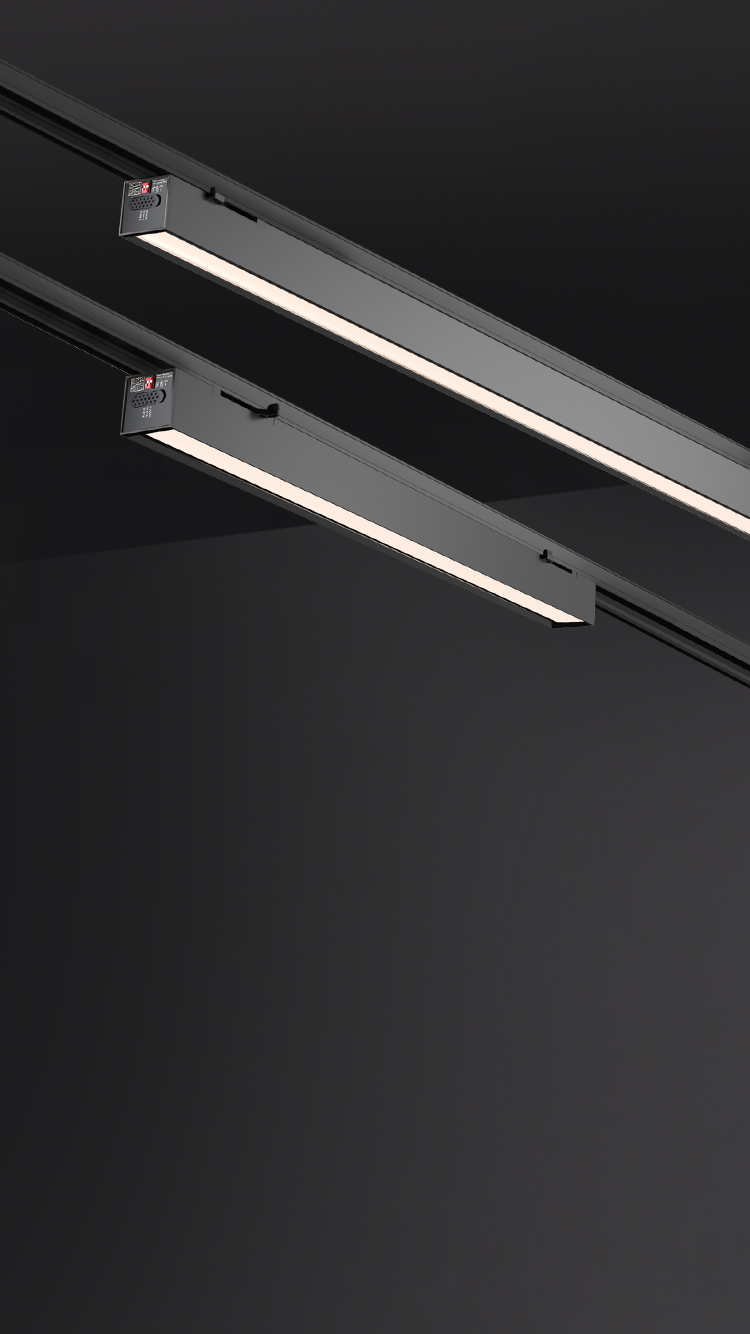

X-Line G2 Linear Track Light
• Super slim design with nearly the same width as standard H/J track rails.
• Selectable CCT and wattage via DIP switch to reduce SKU complexity.
• Interchangeable optics (70°, 90°, Asymmetric, Double Asymmetric) for different applications.
• Up to 140 lm/W high efficiency.
• Modular adapter design: choose between H-Type or J-Type track heads to match your track system.
• Push-pin structure on each adapter allows the contacts to slide, supporting both 1-circuit and 2-circuit configurations.
• Flexible combination with spotlights for ambient + accent lighting.
From retail stores to galleries, offices and hospitality spaces, it gives lighting designers and project teams more flexibility without adding complexity.
Product advantage

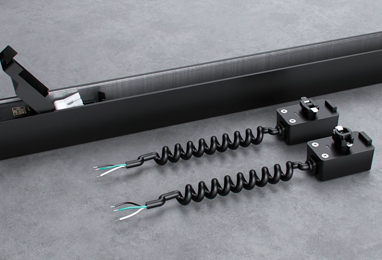

ADAPTER Replacement
Field changeable H type and J type adaptor

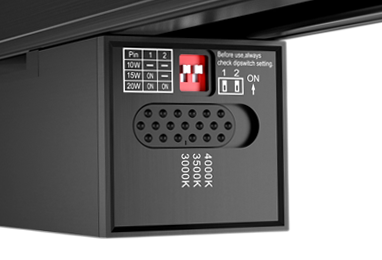

Selectable CCT and wattage
Selectable CCT and wattage via DIP switch to reduce SKU complexity

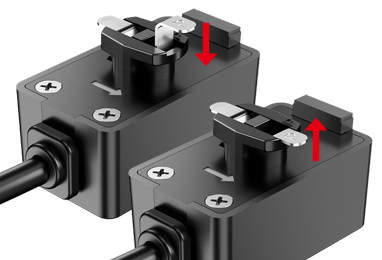

PUSH PIN
Push pin up and down, compatible both one circuit and two circuit track rail

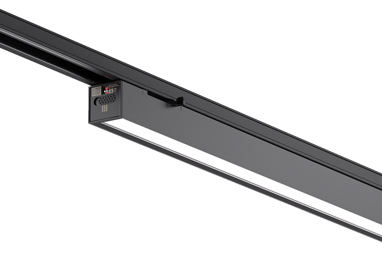

Super slim design
Nearly same width with H/J type track rail
Relevant data
The test data based on 3500K Ra90
| Product name | X-Line Track G2 4ft | X-Line Track G2 2ft |
| Dimming | Triac/ELV | Triac/ELV |
| Installation | H/J Type track | H/J Type track |
| Watt | 40W-35W-30W | 20W-15W-10W |
| Beam Angle | 70° / 90° / Asymmetric / Double asymmetric | 70° / 90° / Asymmetric / Double asymmetric |
| Lumen | 5300lm / 4800lm / 4500lm / 5000lm | 2800lm / 2600lm / 2500lm / 2700lm |
| Intensity | 2600cd / 2000cd / 2500cd / 2200cd | 1600cd / 1100cd / 1500cd / 1300cd |
| CCT | 3000K-3500K-4000K | 3000K-3500K-4000K |
| Finish Color | BK / WH | BK / WH |
