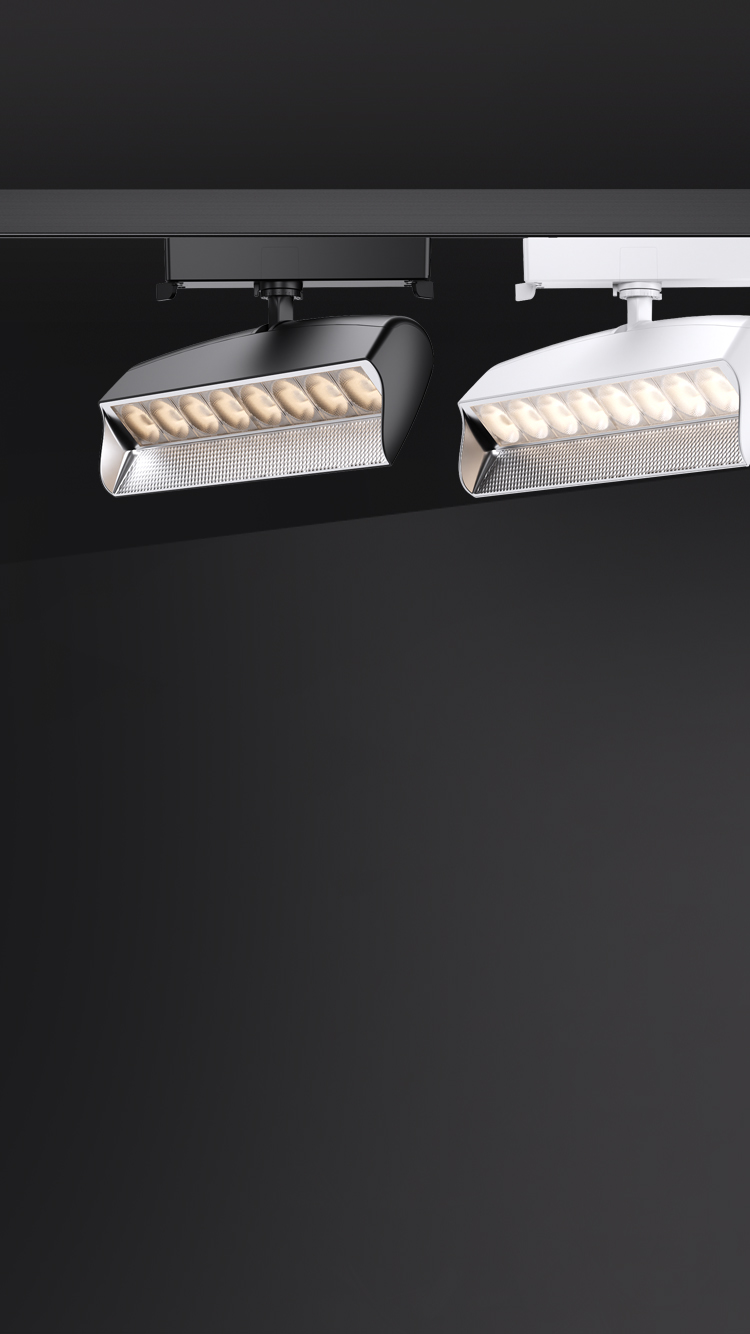

MILO G2 Wall Washer - NA Version
Milo G2 wall washer utilizes aysmetrical lens with reflector to effectively avoid seeing light source directly, it also reduce external perception of the luminous area and provide a wide coverage with uniform light output. With 90° vertical rotation and 360° horizontal rotation, it can easily adapt to various shelf heights, width and direction.
Field changable H and J adaptor by screwdriver, field selectable 3000K-3500K-4000K, makes it is flexible for project.
It’s available for triac dim and non-dimming which is an ideal lighting choice for museums, art galary,supermarket,shopping malls, retails store, etc.
Product advantage

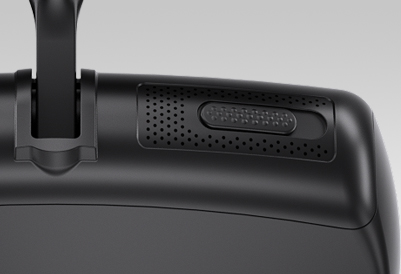

CCT DIP Switch
It can be 3000K-3500K-4000K switchable for three CCT DIP version.

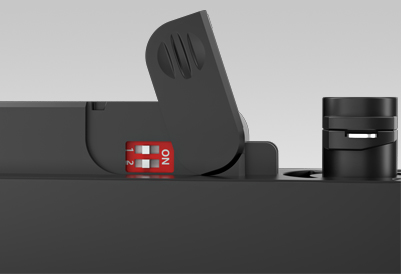

Power switch
It can be 35W-30W-25W switchable for triac dimmable version.

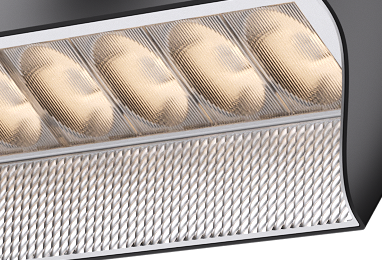

Excellent optic design
Combine aysmetrical lens with reflector avoid seeing light directly and reduce luminous area.

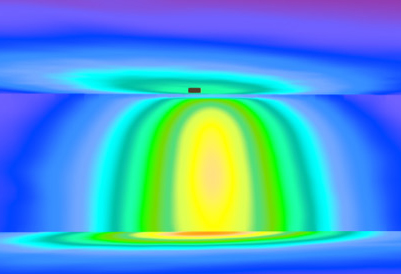

Uniform wall washer light effect
Combines aysmetrical lens with reflector, avoid seeing light directly and reduce luminous area,provide a wide coverage with uniform light output and an extensive lighting area.
Relevant data
Product parameter
| MODEL | 61306.111(H) | 61306.112(J) | 61307.111(H) | 61307.112(J) | 61306.311(H) | 61306.312(J) | 61307.311(H) | 61307.312(J) |
| Installations type | 3wire1circuit - Track(H) | 2wire1circuit - Track(J) | 3wire1circuit - Track(H) | 2wire1circuit - Track(J) | 3wire1circuit - Track(H) | 2wire1circuit - Track(J) | 3wire1circuit - Track(H) | 2wire1circuit - Track(J) |
| Rotation | 360°(X-axis）90°(Y-axis) | 360°(X-axis）90°(Y-axis) | 360°(X-axis）90°(Y-axis) | 360°(X-axis）90°(Y-axis) | 360°(X-axis）90°(Y-axis) | 360°(X-axis）90°(Y-axis) | 360°(X-axis）90°(Y-axis) | 360°(X-axis）90°(Y-axis) |
| Input voltage | 120Vac | 120Vac | 120Vac | 120Vac | 120Vac | 120Vac | 120Vac | 120Vac |
| Input power | 35W-30W-25W | 35W-30W-25W | 45W | 45W | 35W-30W-25W | 35W-30W-25W | 45W | 45W |
| Dimming Way | TRIAC or ELV | TRIAC or ELV | Non-dimming | Non-dimming | TRIAC or ELV | TRIAC or ELV | Non-dimming | Non-dimming |
| Main CCT | 3000K,3500K,4000K | 3000K,3500K,4000K | 3000K,3500K,4000K | 3000K,3500K,4000K | 3000K-3500K-4000K Dip | 3000K-3500K-4000K Dip | 3000K-3500K-4000K Dip | 3000K-3500K-4000K Dip |
| Beam angle | 26°x38° | 26°x38° | 26°x38° | 26°x38° | 26°x38° | 26°x38° | 26°x38° | 26°x38° |
| Lumen | 3500lm | 3500lm | 4500lm | 4500lm | 3200lm | 3200lm | 4000lm | 4000lm |
| Lumen efficacy | 100lm/w | 100lm/w | 100lm/w | 100lm/w | 92lm/w | 92lm/w | 89lm/w | 89lm/w |
| Dimension | L212xW52xH162mm | L212xW52xH162mm | L318xW52xH162mm | L318xW52xH162mm | L212xW52xH162mm | L212xW52xH162mm | L318xW52xH162mm | L318xW52xH162mm |
| Finish Color | Texture white or Texture Black | Texture white or Texture Black | Texture white or Texture Black | Texture white or Texture Black | Texture white or Texture Black | Texture white or Texture Black | Texture white or Texture Black | Texture white or Texture Black |
