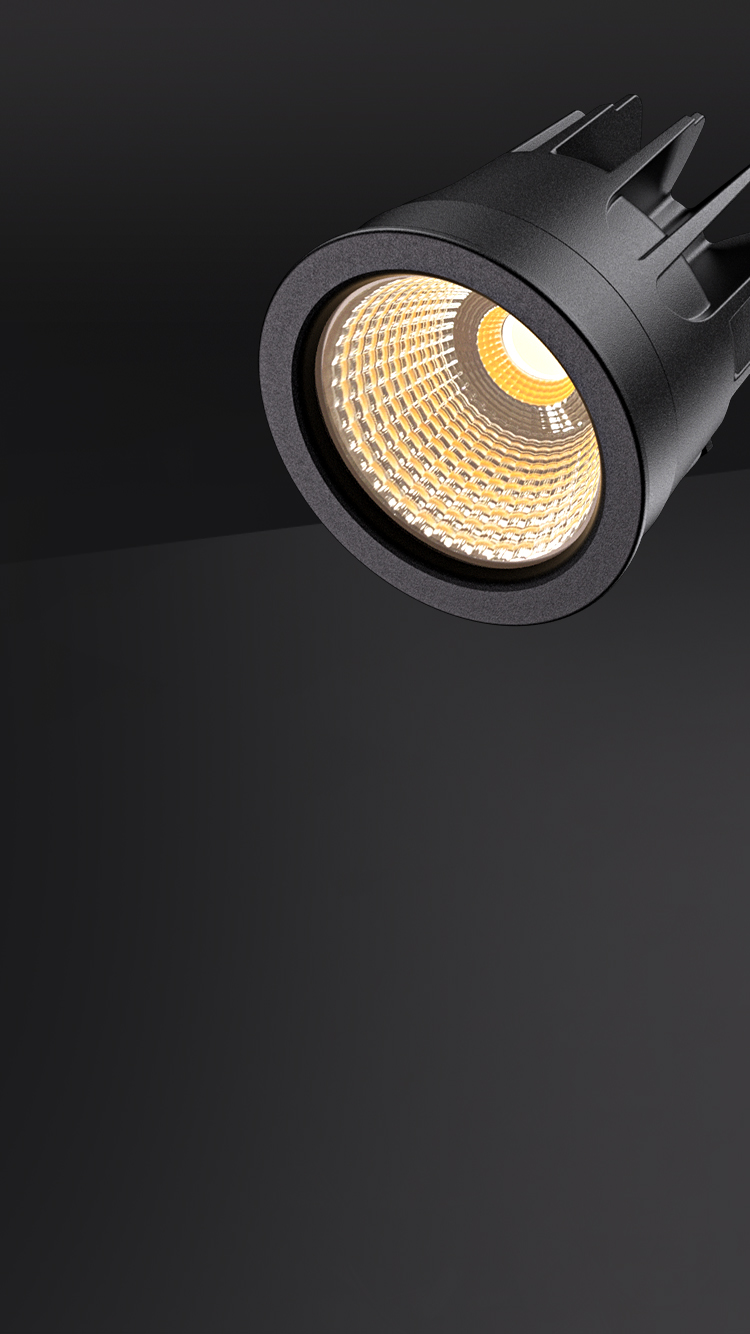

Gemy series spotlight
The GEMY MR16 spotlight module adopts a brand-new structural design and standardized dimensions, making it compatible with the majority of trims on the market. With its compact design and a minimum height of only 38mm, it fits most ceilings seamlessly. It delivers excellent light spot effects, free of dark areas and with uniform illumination. A honeycomb can be installed on-site to achieve UGR <9, creating a comfortable lighting environment. The front is equipped with a silicone waterproof ring, providing a waterproof rating of up to IP54, making it suitable for bathrooms, semi-outdoor corridors, and other similar settings.
Product advantage

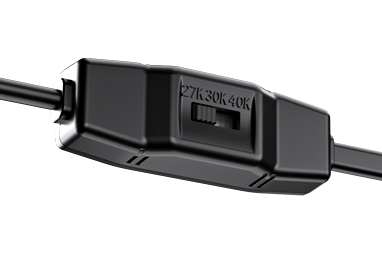

CCT DIP SWITCH
The CCT are switchable:
1800K-3000K-4000K
2700K-3000K-4000K
3000K-3500K-4000K

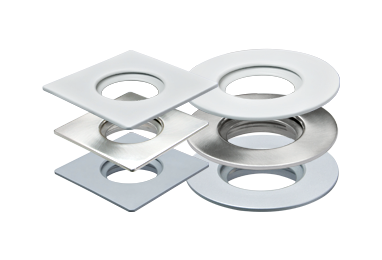

Compatible with different trims
The GEMY MR16 spotlight module adopts a brand-new structural design and standardized dimensions, making it compatible with the majority of trims on the market.

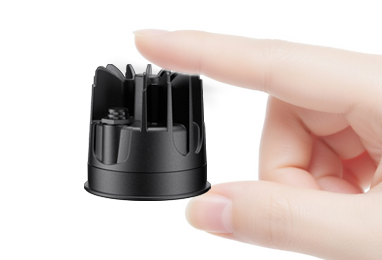

Compact design
Only 38mm (6.3W) and 48mm (8.4W) in height for fexible installation
IP 54
The front is equipped with a silicone waterproof ring, providing a waterproof rating of up to IP54
Relevant data
Product parameter
| Item number | 15001.121(Single CCT) | 15001.321(3CCT) | 15001.721(DTW) | 15002.121(Single CCT) | 15002.321(3CCT) | 15002.721(DTW) |
| Input Voltage | 36VDC | 36VDC | 36VDC | 36VDC | 36VDC | 36VDC |
| Module Wattage | 6.3W | 6.3W | 6.3W | 8.4W | 8.4W | 8.4W |
| Dimming | 0-10V, Triac, DALI | 0-10V, Triac, DALI | 0-10V, Triac, DALI | 0-10V, Triac, DALI | 0-10V, Triac, DALI | 0-10V, Triac, DALI |
| System Lumen | 725Lm@3000K 36° | 725Lm@3000K 36° | 560Lm@3000K 36° | 960Lm@3000K 36° | 960Lm@3000K 36° | 750Lm@3000K 36° |
| Ra | 90 | 93 | 95 | 90 | 93 | 95 |
| CCT | 2700K,3000K,4000K | 1800K-3000K-4000K 2700K-3000K-4000K 3000K-3500K-4000K |
2000K~2700K | 2700K,3000K,4000K | 1800K-3000K-4000K 2700K-3000K-4000K 3000K-3500K-4000K |
2000K~3000K |
| Beam Angle | 15°, 24°, 36°, 50° | 24°, 36°, 50° | 24°, 36°, 50° | 15°, 24°, 36°, 50° | 24°, 36°, 50° | 24°, 36°, 50° |
| Dimension | D50 x H38mm D50 x H41mm(Honeycomb) |
D50 x H38mm D50 x H41mm(Honeycomb) |
D50 x H38mm D50 x H41mm(Honeycomb) |
D50 x H48mm D50 x H51mm(Honeycomb) |
D50 x H48mm D50 x H51mm(Honeycomb) |
D50 x H48mm D50 x H51mm(Honeycomb) |
| Finish | BK | BK | BK | BK | BK | BK |
