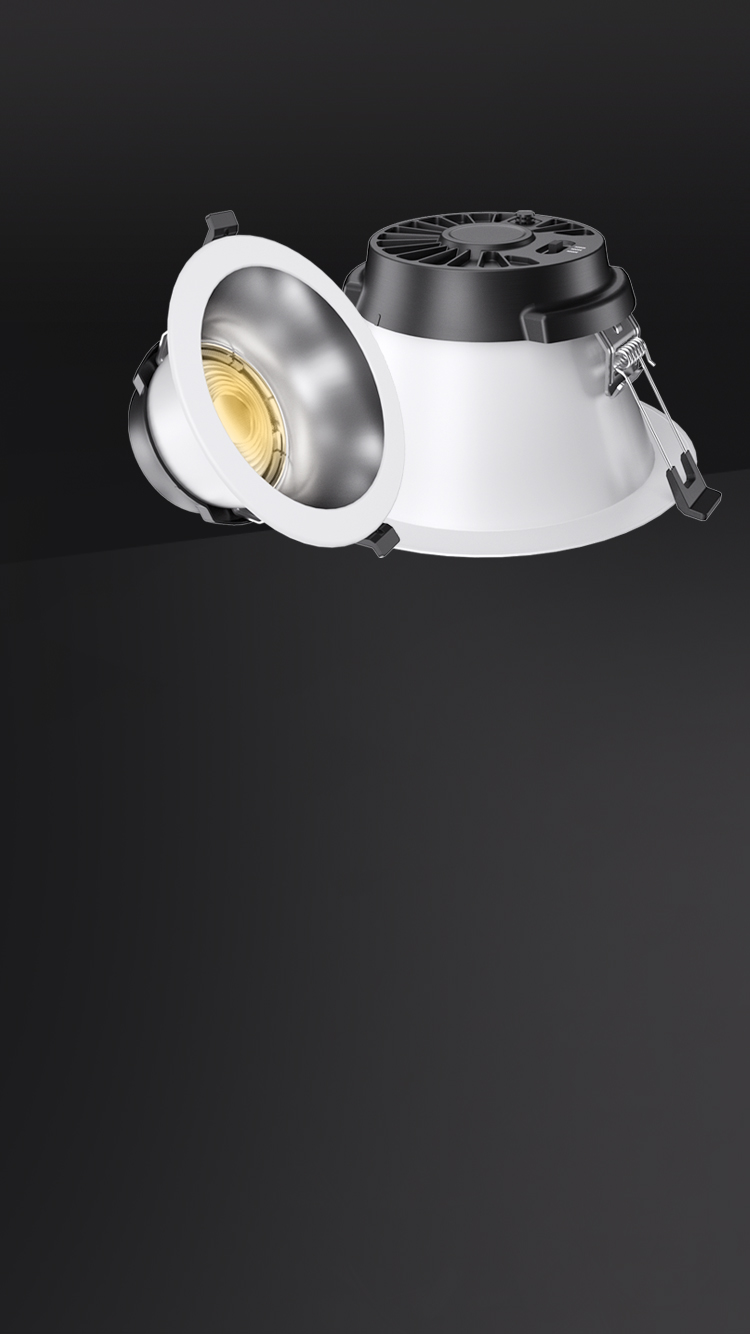

Pure series downlight
The PURE series downlights are available in a full range of sizes, including 5, 6, and 8 inches, with 4, 10 and 12 inches customizable. The light sources include COB single color temperature, selectable three color temperatures, and tunable white (2700–6500K). With a modular design, the light source and reflector are replaceable; the reflector is available in white and mirror finishes, with other colors customizable. The power supply is replaceable, with options for on/off, triac dimming, 0-10V dimming, DALI dimming, and Bluetooth power supply, making it easier for distributors to manage inventory and facilitating maintenance while being more environmentally friendly.
The front features a waterproof ring, achieving an IP54 rating, making it suitable for humid environments and extending the lifespan of the fixtures. With a luminous efficacy of 140 lm/W, it is energy-saving and environmentally friendly. The color rendering index reaches 90, providing comfortable ambient light, making it suitable for commercial spaces, offices, schools, banks, and more. In summary, the PURE series is a multifunctional downlight that is user-friendly, easy to install and maintain, and energy-efficient.
Product advantage

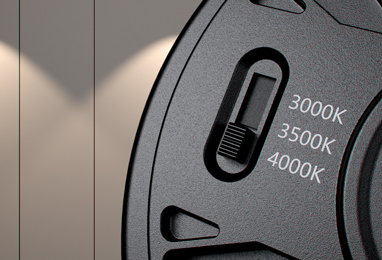

CCT Selectable
On-site DIP switch: 3000K / 3500K / 4000K

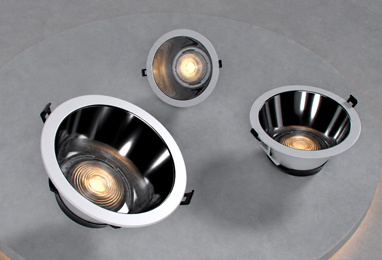

Surface below 40 °C
Efficient heat sink, safe to touch
High Colour Rendering
Ra 90 with R9 > 50 for true, vibrant colour
100,000 Hours
L70B50 rated — fewer replacements over the project life
Relevant data
Product parameter
| Product Name | PURE D145 20W 3CCT | PURE D168 25W 3CCT | PURE D225 35W 3CCT | PURE D145 20W 1CCT | PURE D168 25W 1CCT | PURE D225 35W 1CCT |
| Light Sourec Pon(W) | 21 | 25 | 30 | 21 | 25 | 30 |
| Light Source Input Voltage(VDC) | 35 | 35 | 35 | 35 | 35 | 35 |
| Beam Angle（°） | 50° | 50° | 50° | 50° | 50° | 50° |
| CCT(K) | 3000-3500-4000 | 3000-3500-4000 | 3000-3500-4000 | 2700,3000,4000,5000 | 2700,3000,4000,5000 | 2700,3000,4000,5000 |
| Ra | 90 | 90 | 90 | 90 | 90 | 90 |
| DxH(mm) | 145x88 | 168x95 | 225x112 | 145x88 | 168x95 | 225x112 |
