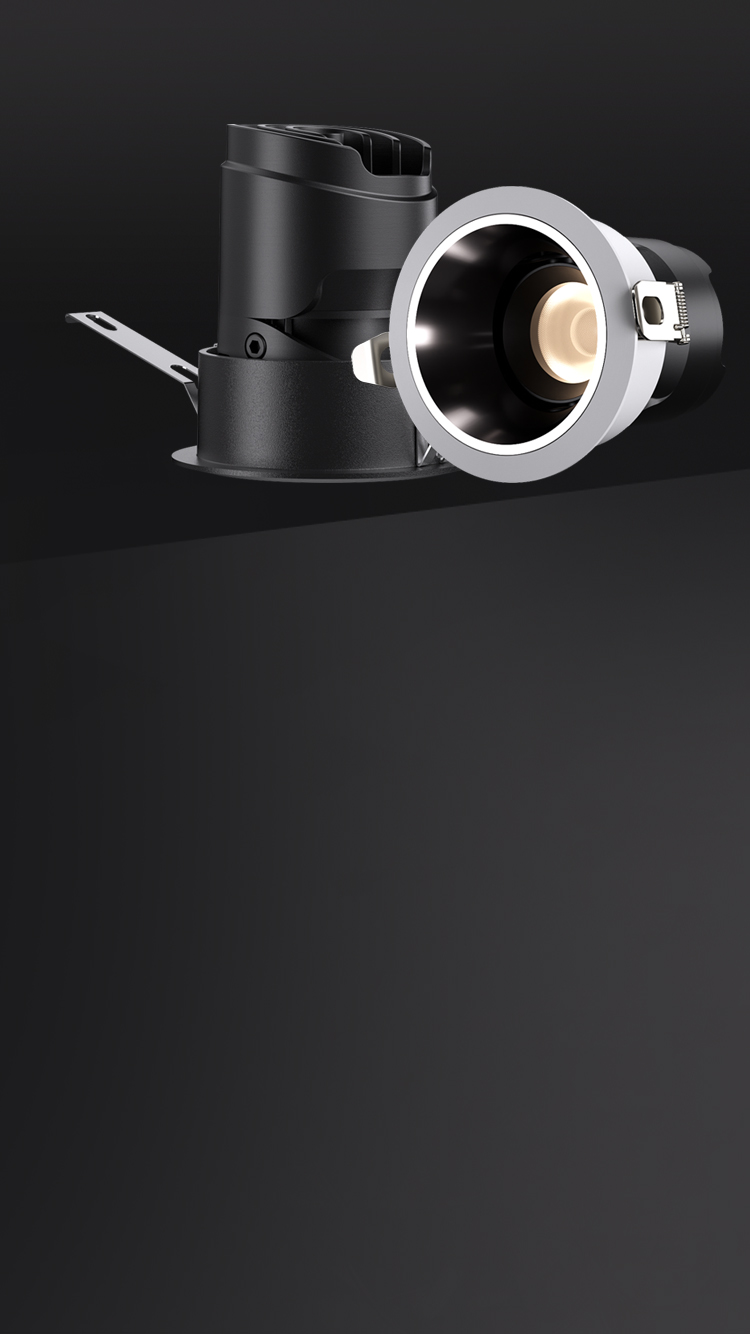

LUNA LED Downlight - NA Version
Luna downlight is circular design product, light engine, driver, optics and mounting trims, can be combined together freely, fully modular, fully recycled and fully sustainable, it gives great flexiblity in installation, versatility in application and reduce the stocks, and you can replace all these parts without using tools.
Luna downlight combines precise lens and secondary reflector, it offers a high output and high quanlity light and low UGR, it provide accent ligthing, flood lighting or general lighting and wallwasher effect for both small object or large walls.
It can be triac dimmable and 1-10V dimmable, 30° tilt, 355° rotate, it is ideal for museums, art-gallery, showrooms, hotel, restaurant, bars,fashion shop , car dealers , furniture store , retail shops, office and residential application.
Product advantage

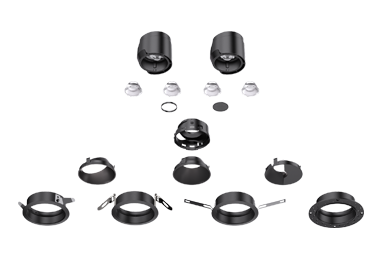

Modular design
Its light engine, driver, optics, and mounting trims can all be freely combined and are fully modular.

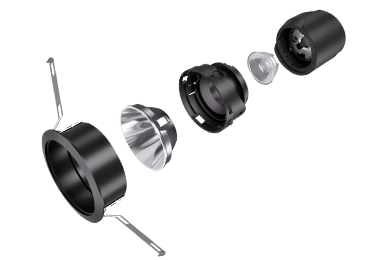

Tool-free replacement
Twist and lock & push and lock design, all parts can be combined together freely without tools
Three different reflectors
Three types interchangable reflector four color(silver,black,
white and gold)
Four different trim
Four types interchangable trim
Relevant data
Product parameter
| Series | 2 INCH LUNA LED Downlight | 3 INCH LUNA LED Downlight |
| Input Voltage | 120Vac | 120Vac |
| Wattage | 7.5W | 12W |
| Dimming | 1-10V, Triac | 1-10V, Triac |
| System Lumen | 600Lm@3000K 24° | 1000Lm@3000K 24° |
| Ra | 90 | 90 |
| CCT | 2000K-3000K Dim to warm 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
2000K-3000K Dim to warm 2200K, 2400K, 2700K, 3000K, 3500K, 4000K |
| Beam Angle | 15°, 24°, 36°, 50° | 15°, 24°, 36°, 50° |
| Reflector | Round adjustable，Round fixed，Wallwasher | Round adjustable，Round fixed，Wallwasher |
| Trim | Trim with torsion spring，Trim with strip spring，Trim with blade spring | Trimless，Trim with torsion spring，Trim with strip spring，Trim with blade spring |
| Finish | BK, WH | BK, WH |
