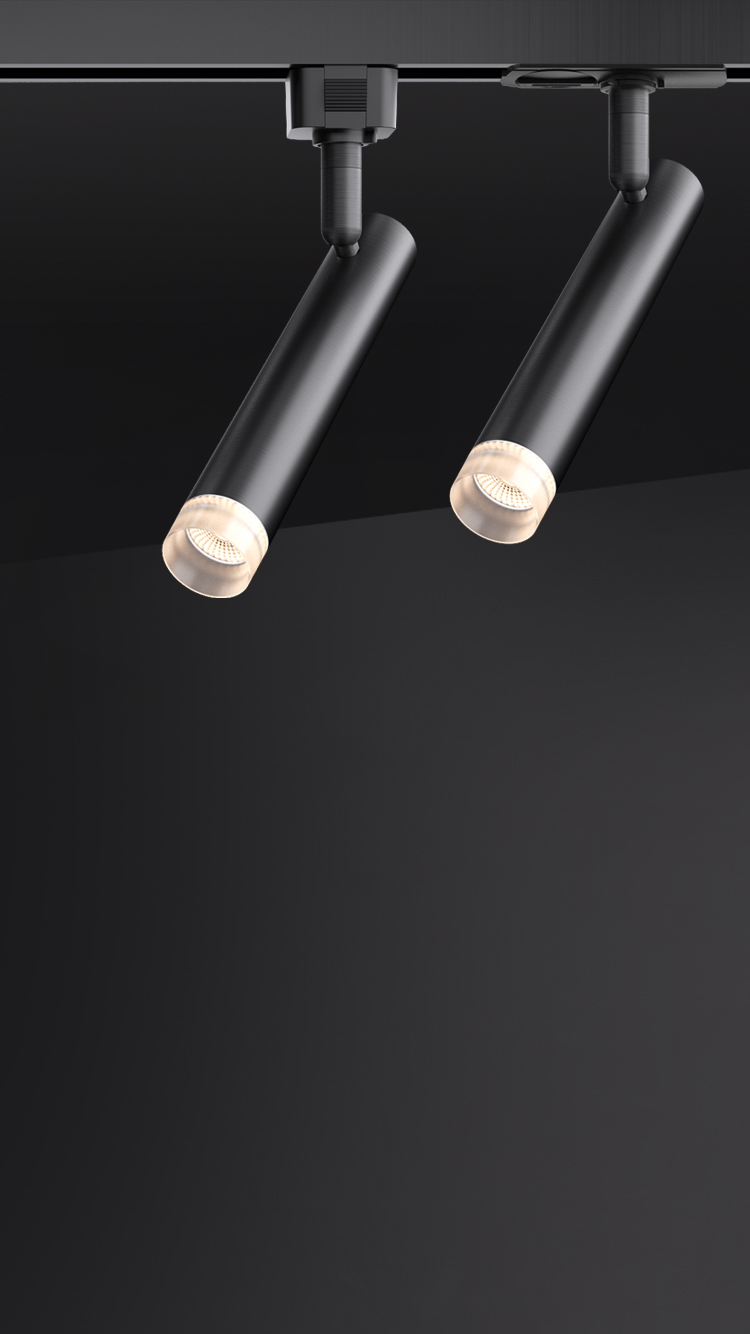

ATOM Track Spot Light EU&NA
The ATOM series track lights are compact, simple, and aesthetically pleasing.
They come in two power options: 4.5 watts and 5.5 watts, corresponding to diameters of 26 mm and 32 mm, respectively.
There are two beam angles available: 24 degrees and 36 degrees. The lights feature triac dimming with a dimming range of 1–100%, catering to various needs.
They are available in two colors: white and black, with three lampshade options: metal, transparent PC, and frosted PC, providing different atmospheres.
The lights can be installed in various ways, including track mounting, pendant mounting, ceiling mounting, and recessed mounting, with different accessory options to meet various scenario requirements.
They are suitable for homes, cafes, restaurants, and hotels.
Product Advantage
Multiple installation methods
Track suspend ,recessed and surface are optional
Changable lens cover
Transparent PC cover and frosted PC cover as optional accessories
Compact design
The diameter is only 26mm. Minimalist, compact, and aesthetically pleasing

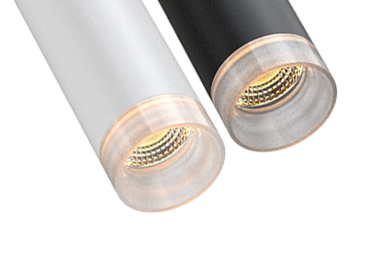

Excellent Optic Design
Good light spot uniformity, uniform light mixing, excellent consistency
Relevant data
Product parameter
| Product Name | Atom D26 track spotlight 4.5W-EU (triac dimmable) |
Atom D32 track spotlight 5.5W-EU (triac dimmable) |
Atom D26 track spotlight 4.5W-NA (1CCT triac dimmable) |
Atom D32 track spotlight 5.5W-NA (1CCT triac dimmable) |
| Installations type | 3 wire 1 circuit Track | 3 wire 1 circuit Track | H-Type / J-Type | H-Type / J-Type |
| Input voltage | 220-240Vac | 220-240Vac | 120V | 120V |
| Input power | 4.5W | 5.5W | 4.5W | 5.5W |
| CCT | 2700K, 3000K, 3500K, 4000K | 2700K, 3000K, 3500K, 4000K | 2200K,2400K,2700K,3000K,3500K,4000K | 2200K,2400K,2700K,3000K,3500K,4000K |
| Lumen | 270lm | 390lm | 270lm | 390lm |
| Lumen efficacy | 62lm/W | 70lm/W | 62lm/W | 70lm/W |
| Finish Color | Matte White RAL9016 / Black RAL7021 | Matte White RAL9016 / Black RAL7021 | Matte White RAL9016 / Black RAL7021 | Matte White RAL9016 / Black RAL7021 |
| Dimension | D26x190mm | D32x190mm | D26x190mm | D32x190mm |
| Beam angle | 24°, 36° | 24°, 36° | 24°, 36° | 24°, 36° |
